mParticle

Overview

mParticle, a Customer Data Platform (CDP), enables you to track event data and route it to various downstream destinations. As a native partner, Mixpanel seamlessly integrates with mParticle. If you use mParticle for tracking, you can send your data to Mixpanel with just a few clicks.

How the Integration Works

In simple terms, mParticle collects data from any number of inputs (mParticle APIs, mobile apps, web, external feeds), transforms it, and forwards it to your Mixpanel project.

mParticle forwards two main types of data:

• Event Data: Any action done by users in your app

• Audience Data: Data about users, including profile properties

Refer to the mParticle Getting Started Guide for detailed instructions on how to install the mParticle.

Setup

1. Install mParticle

Install mParticle as outlined in the Getting Started Guide.

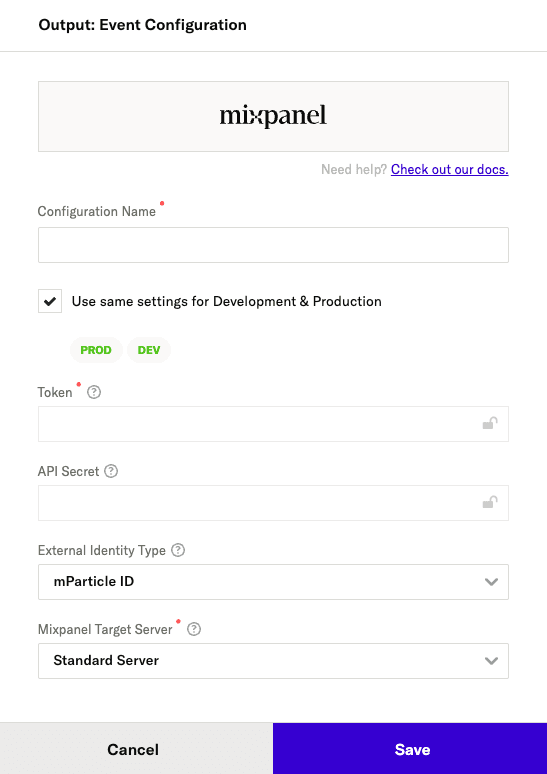

2. Add mParticle configuration and connection settings for your Mixpanel connection under Data Platform > Setup > Outputs

Configuration Settings

Add Mixpanel Output to your connection

Under Setup > Connections, add your new Mixpanel output and select your settings:

View all connection settings

3. Identify Users

Identify users calling mParticle.Identity.Login() when users sign up and log in.

mParticle has four IDSync methods on the web SDK:

• Identify: Called automatically at session start, which generates an anonymous ID.
• Login: Called on signup and login to identify a user.
• Logout: Called on logout to clear user data from local storage.
• Modify: Used to modify mParticle user identities, such as updating an email address. Typically, this will not be used with Mixpanel.

When identifying users, you need to provide the customer ID or other known value as determined by mParticle’s identity priorities. While mParticle manages identity internally, the External ID value set in your mParticle configuration settings will be set as the $distinct_id for Mixpanel. While mParticle accepts several user identifiers, only one will be sent as the External ID to Mixpanel.

Here is an example Login() call using mParticle’s Web SDK. If you plan to set user attributes on signup, you need to include them in a callback function as mParticle runs these operations asynchronously. While email is included as an identifier, it is also included in the callback to be set as a profile property. If your project uses Customer ID as the External ID, then it would not be necessary to include email in the identity request for Mixpanel.

//create main request body of identifiers

let identityRequest = {
	userIdentities: {
		email: user.email,
		customerid: user.id
	}
};
//optional callback to set attributes after the identify call is complete

let identityCallback = function (result) {
	const mParticleUser = result.getUser();
	if (mParticleUser) {
		mParticleUser.setUserAttributes({
			favorite_genre: user.favorite_genre,
			plan_type: user.plan,
			app: "music-finder",
			email: user.email
		});
	}
};

//send request body and callback to login endpoint

mParticle.Identity.login(identityRequest, identityCallback);

4. Create User Profiles

To create profiles and set profile properties, call SetUserAttribute. These will persist until overwritten. Note that if you identify a user in mParticle with email, it must also be set as an attribute to store it as a Mixpanel profile property.

Here is an example call to set user attributes:

// get current user

let currentUser = mParticle.Identity.getCurrentUser();

//set user attribute

currentUser.setUserAttribute("plan_type", "Premium");

5. Track User Actions

While each of mParticle’s client SDKs automatically capture some events, you can track custom events to send to Mixpanel.

Custom events contain the following attributes:

• A free-form name string
• A custom event type (required for custom events)
• A free-form map of custom attributes

Here is a simple custom event with event types defined beforehand:

//define event types - these are used to further classify your data.

EventType = {
  Navigation: 1,
  Location: 2,
  Search: 3,
  Transaction: 4,
  UserContent: 5,
  UserPreference: 6,
  Social: 7,
  Other: 8
}

//track the event

mParticle.logEvent(
  'Song Played', // event name
  mParticle.EventType.UserAction, // event type
{
  // custom attributes
  'Song Name':'Blinding Lights',
  'Artist': 'The Weeknd'
}
);

6. Check for Success

Open up Events View in Mixpanel to view incoming events.

Sending Audiences to Mixpanel using Cohorts

By default, mParticle does not have a way to map audiences to Mixpanel. Instead, you can forward an audience to Mixpanel by creating a profile property for users and then creating a cohort with that property. Here are the steps below:

1. Add an Audience Output under Data Platform > Setup > Audience. This is similar to creating your output, where you need to add your project token and match your data residency to your project.

2. Create an Audience (if none exist) under Segmentation > Audiences and specify your target output.

3. Activate your connection

4. Return to Data Platform > Setup > Audience and add the connected audience to the Audience Output.

5. Verify the size of the audience. You may need to wait until your audience has finished calculating, as shown by the percentage marker under audience. Smaller audience sizes (< 100k) may not preview.

mParticle will add a user property called “SegmentMembership” to audience members’ user profiles in Mixpanel

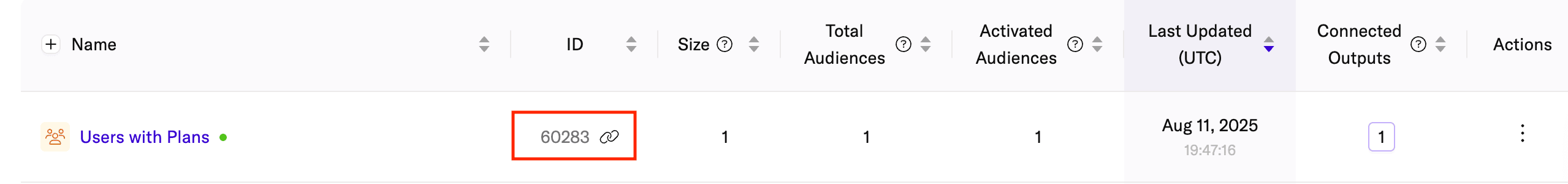

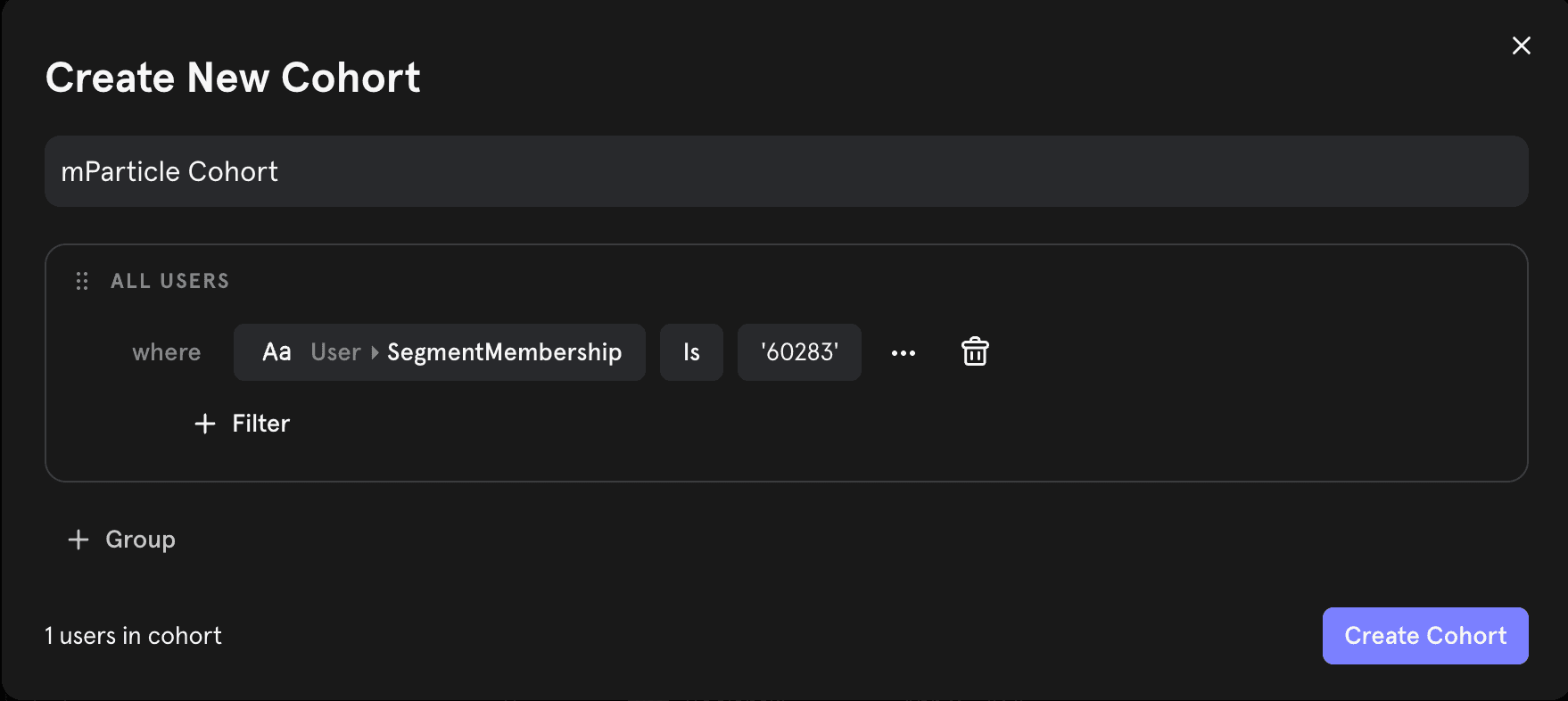

6. Create a cohort in Mixpanel looking for the audience ID or name if you specified that in your setup.

Debugging

For debugging purposes, it can be useful to see exactly what mParticle is sending to Mixpanel.

You can validate this data through the mParticle Live Stream and Event Forwarding page. You can also use the mParticle Logger in your configuration for real-time errors with your implementation.

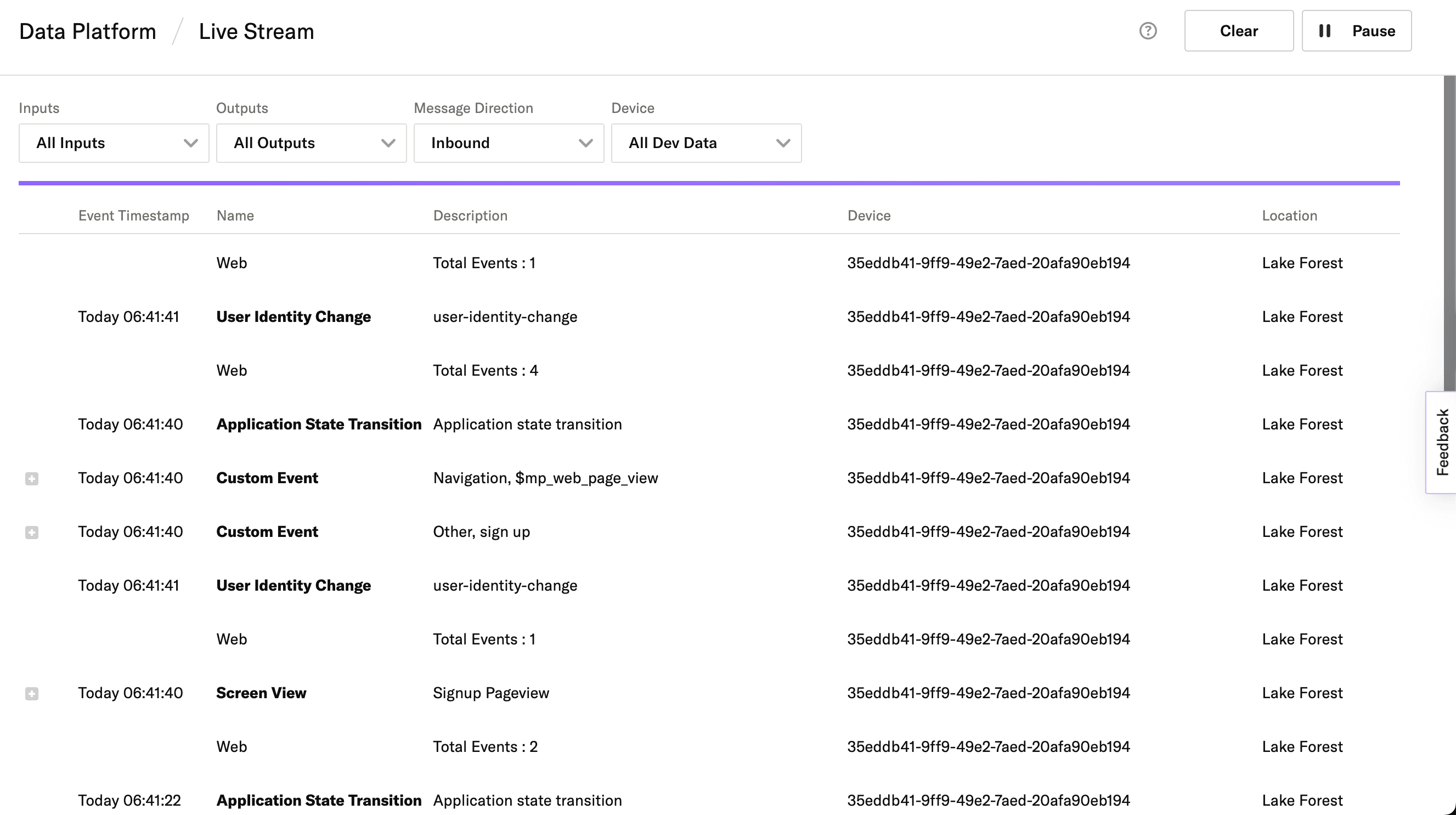

Live Stream

The Live Stream provides a real-time view of all data flowing in and out of mParticle.

Here, you can filter by sources and examine the JSON data for specific events, and which events/user attributes were included in a batch message.

Access the Live Stream page under Data Platform > Live Stream using the left navigation.

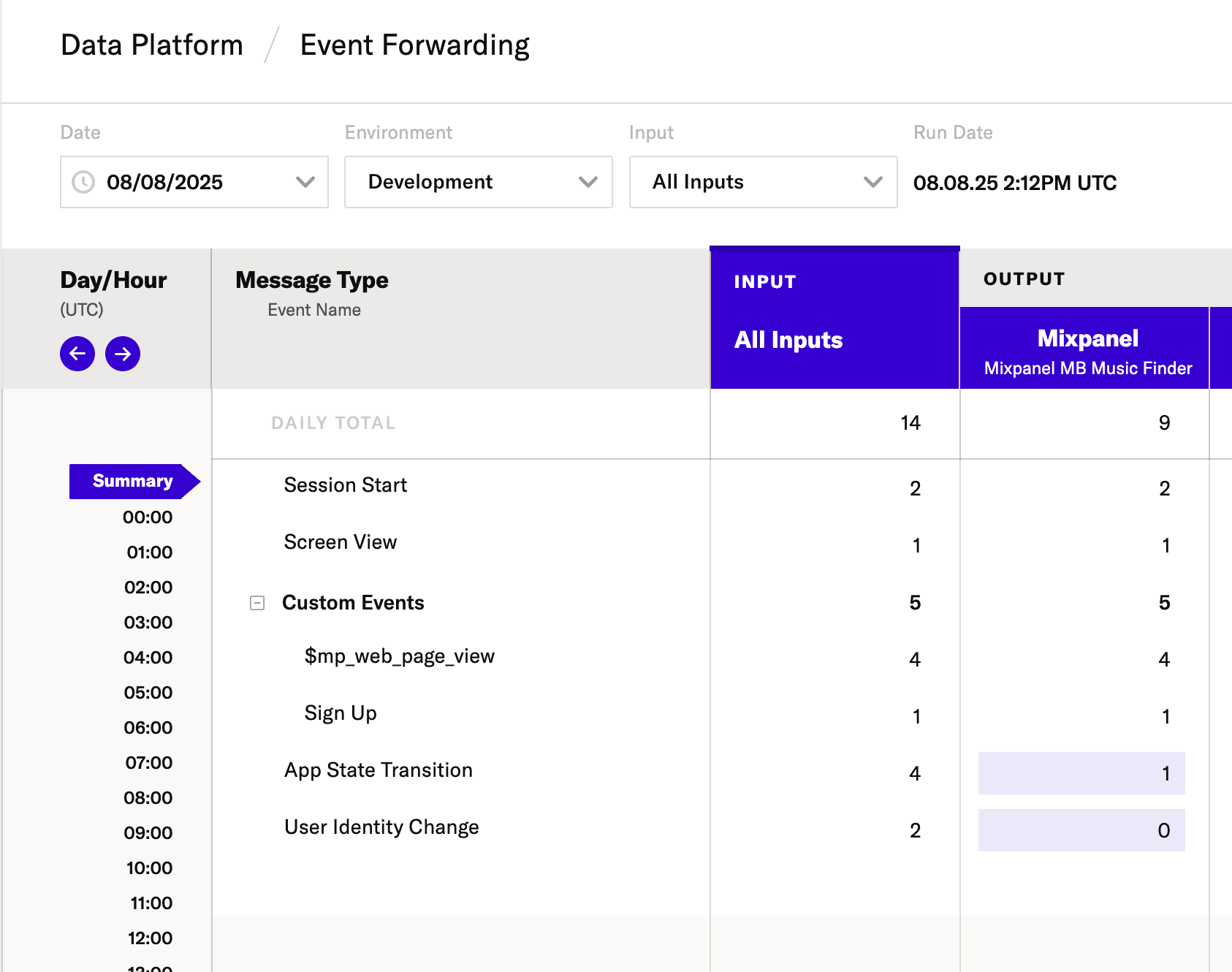

Event Forwarding

The Event Forwarding page provides an overview of the volume of data ingested by your inputs and the volume of data forwarded to your connected output integrations.

Access the Event Forwarding page under Data Platform > Event Forwarding using the left navigation.

Here, you can select your input(s) and any number of outputs to compare events ingested by mParticle and forwarded to Mixpanel to determine any unexpected discrepancies or errors. You can also add filters to your connections to control which data goes into Mixpanel.

Logger

To log warnings and other information, please see the mParticle’s custom logger documentation. For example, the Web SDK allows you to set “logLevel” to warning or verbose.

window.mParticle = {
			config: {
				isDevelopmentMode: true,
				logLevel: 'verbose',
				appName: "music-finder"
			},
		};

FAQ

1. Why are my mParticle data not appearing in my project?

This could be due to several reasons:

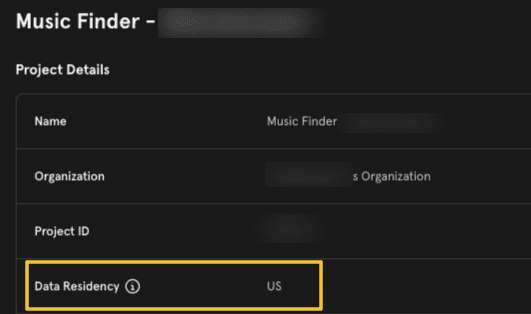

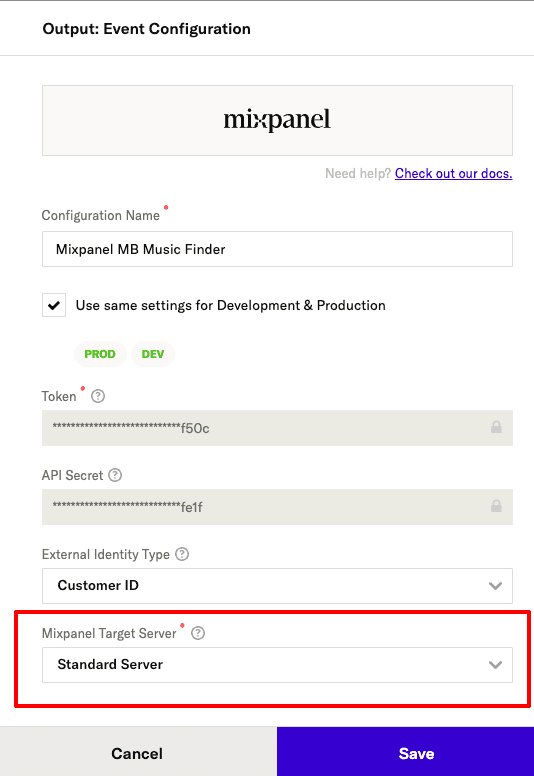

• Storing data in the EU: A common issue is that the data in mParticle is enabled to be sent to an EU endpoint, but the Mixpanel data is still being stored outside of the EU. Both endpoints for mParticle and Mixpanel need to point to the EU. Check your Mixpanel data residency in your project settings, and set your mParticle residency under output configuration > Mixpanel Target Server.

• Project Token mismatch: Please ensure the project token on your mParticle output matches the token in your Mixpanel project

2. Why are there duplicate or disconnected profiles in Mixpanel?

• This can happen if you are attempting to set profile attributes before calling Login or as a separate call at the same time as mParticle’s login method. If you want to create a profile right after signing up, be sure to wrap your setUserAttribute call in a callback function. Example in identify users section.

• If you are using Simplified ID Merge, please ensure that the “Simplified ID Merge” setting is selected in your connection output settings.

3. How do I register super properties using mParticle?

• Super properties can be set in your connection output settings.

4. How can I filter for events that originate from mParticle in my project?

• Events coming from mParticle will show a value of “Web” under Mixpanel Library. You may need to include an attribute with events that indicate the source is “mParticle”.

5. Why are my audiences not forwarding to Mixpanel?

Please check the following settings:

• Ensure you have an audience output configured under Data Platform > Setup > Audience with your audience selected.
• Ensure your audience is targeting your audience output.
• Ensure your audience has fully processed in mParticle.
• Download your audience to ensure proper enrollment.
• You must create a cohort in Mixpanel defined by the profile property of the audience ID or name.
